Durata de livrare: 1

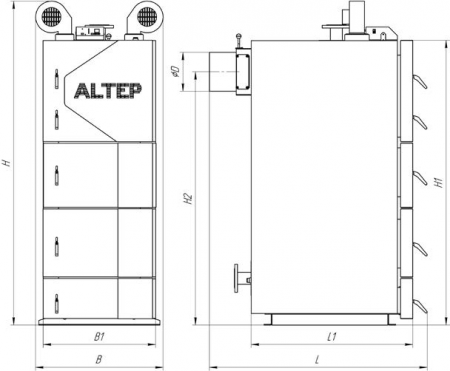

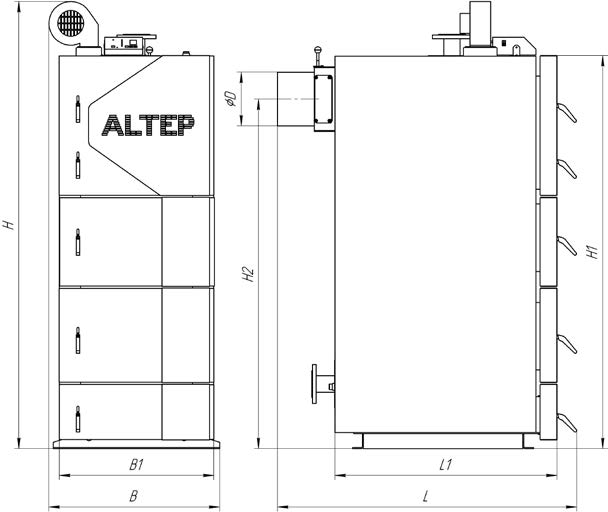

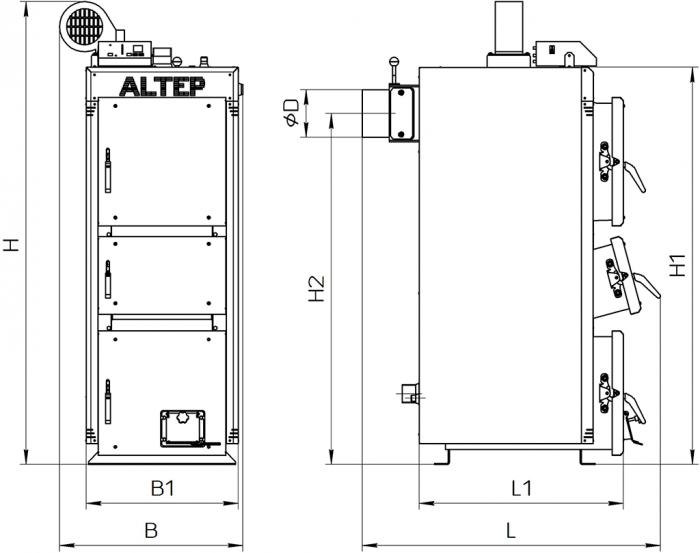

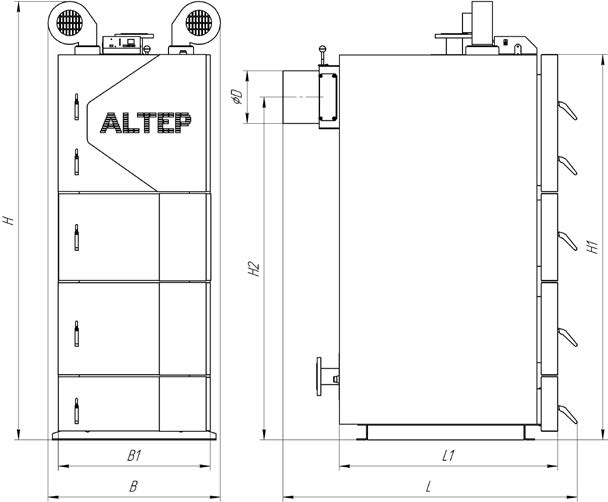

Dimensiuni automatizat | U.M. | 21 kW | 27 kW | 33 kW | 40 kW | 50 kW | 62 kW | 75 kW | 95 kW | 120 kW | 150 kW | 200 kW | 250 kW | 300 kW |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B | mm | 610 | 610 | 660 | 660 | 660 | 790 | 790 | 790 | 880 | 880 | 960 | 1070 | 1270 |
B1 | mm | 510 | 510 | 560 | 560 | 560 | 720 | 720 | 720 | 860 | 860 | 860 | 1070 | 1270 |
H | mm | 1545 | 1545 | 1595 | 1645 | 1645 | 2000 | 2050 | 2070 | 2210 | 2210 | 2250 | 2350 | 2350 |
H1 | mm | 1325 | 1325 | 1375 | 1425 | 1425 | 1740 | 1790 | 1820 | 1995 | 1995 | 1995 | 2230 | 2230 |
H2 | mm | 1170 | 1170 | 1210 | 1260 | 1240 | 1541 | 1591 | 1616 | 1768 | 1768 | 1768 | 1992 | 1967 |
L | mm | 1000 | 1050 | 1050 | 1120 | 1200 | 1240 | 1290 | 1390 | 1500 | 1630 | 1730 | 1940 | 2100 |
L1 | mm | 680 | 730 | 730 | 800 | 880 | 880 | 930 | 1030 | 1100 | 1230 | 1330 | 1490 | 1650 |
D | mm | 159 | 159 | 178 | 178 | 219 | 248 | 248 | 248 | 298 | 298 | 298 | 348 | 398 |
Dimensiuni mecanizat | U.M. | 21 kW | 27 kW | 33 kW | 40 kW | 50 kW | ||||||||
B | mm | 680 | 680 | 730 | 730 | 730 | ||||||||
H | mm | 1390 | 1390 | 1440 | 1490 | 1490 |
